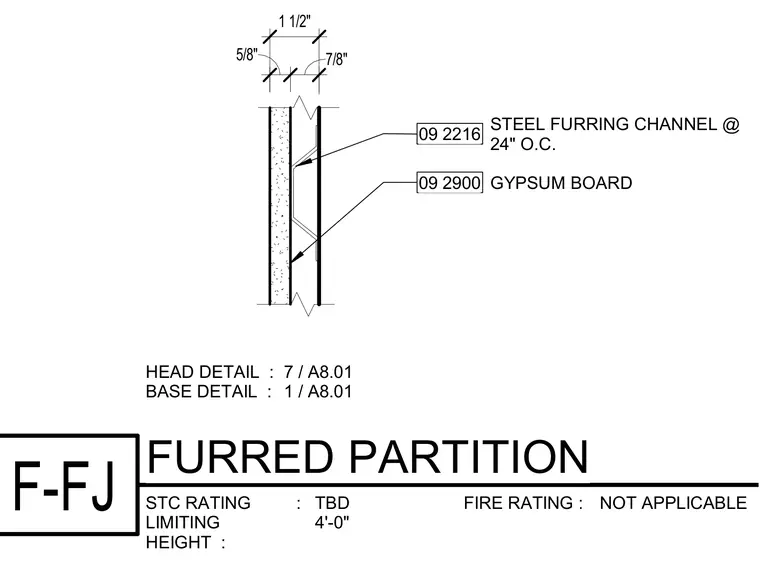

This furred partition assembly consists of steel furring channels spaced at twenty-four inches on center with a single layer of gypsum board attached. Dimensions indicate a 1-1/2 inch channel depth with 5/8 inch and 7/8 inch clearances. The assembly notes specify a limiting height of 4'-0" with Sound Transmission Class and fire ratings as indicated.
STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : F-FJ FURRED PARTITION TBD NOT APPLICABLE 4'-0" 7 / A8.01 1 / A8.01 5/8" 7/8" 09 2900 GYPSUM BOARD 1 1/2" 09 2216 STEEL FURRING CHANNEL @ 24" O.C.
