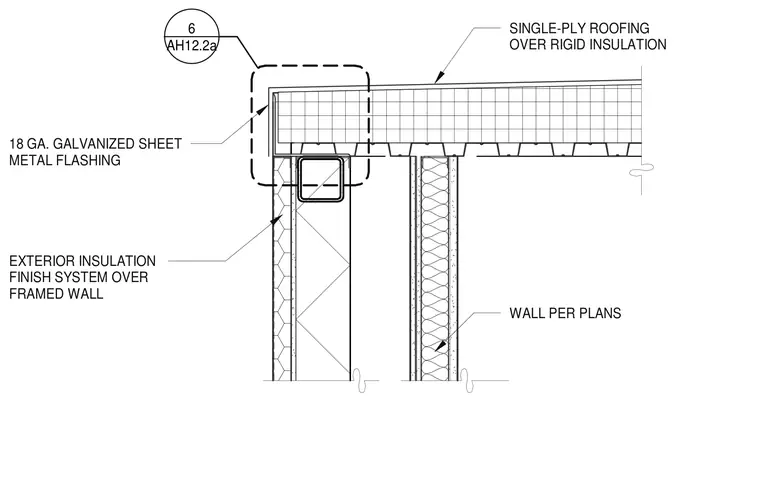

An 18-gauge galvanized sheet metal flashing caps the roof edge above an exterior insulation finish system over a framed wall. Single-ply roofing is laid over rigid insulation supported by a metal deck. An interior framed wall with cavity insulation is positioned below the roof assembly.
AH12.2a 6 18 GA. GALVANIZED SHEET METAL FLASHING EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL WALL PER PLANS SINGLE-PLY ROOFING OVER RIGID INSULATION
