Architectural · A-BZN56

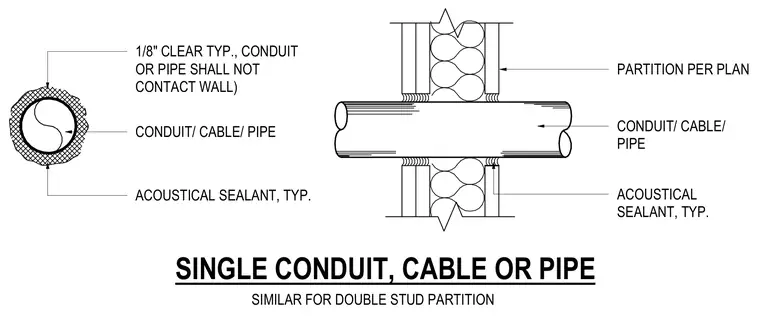

Single Conduit, Cable or Pipe Penetration

Materials

Elements

About this detail

A single conduit, cable, or pipe passes through a partition per plan, maintaining a typical one-eighth-inch clear space so the conduit or pipe does not contact the wall. Acoustical sealant is applied typically at the perimeter of the penetration on both sides of the wall assembly. A similar condition applies for double stud partitions.
