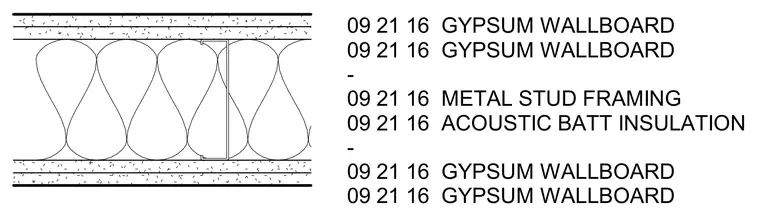

This interior partition detail consists of cold-formed metal stud framing with acoustic batt insulation placed in the cavity. Both sides of the framing are finished with double layers of gypsum wallboard. MasterFormat section numbers 09 21 16 identify the gypsum wallboard, metal stud framing, and acoustic batt insulation materials.
09 21 16 GYPSUM WALLBOARD 09 21 16 GYPSUM WALLBOARD - 09 21 16 METAL STUD FRAMING 09 21 16 ACOUSTIC BATT INSULATION - 09 21 16 GYPSUM WALLBOARD 09 21 16 GYPSUM WALLBOARD
