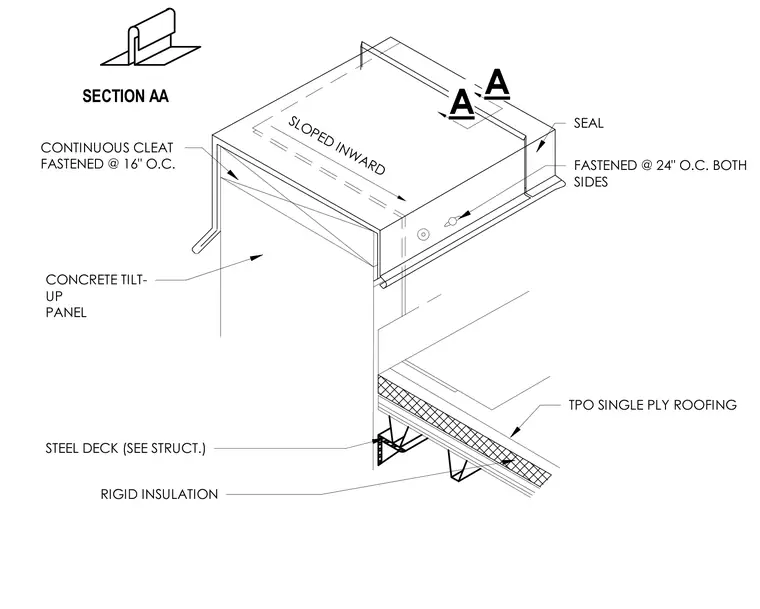

A metal coping cap is installed over a concrete tilt-up wall panel, sloped inward toward the roof deck. A continuous cleat is fastened at sixteen inches on center along the outer edge to secure the cap. The assembly ties into a TPO single-ply roofing membrane and rigid insulation over a steel deck.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
