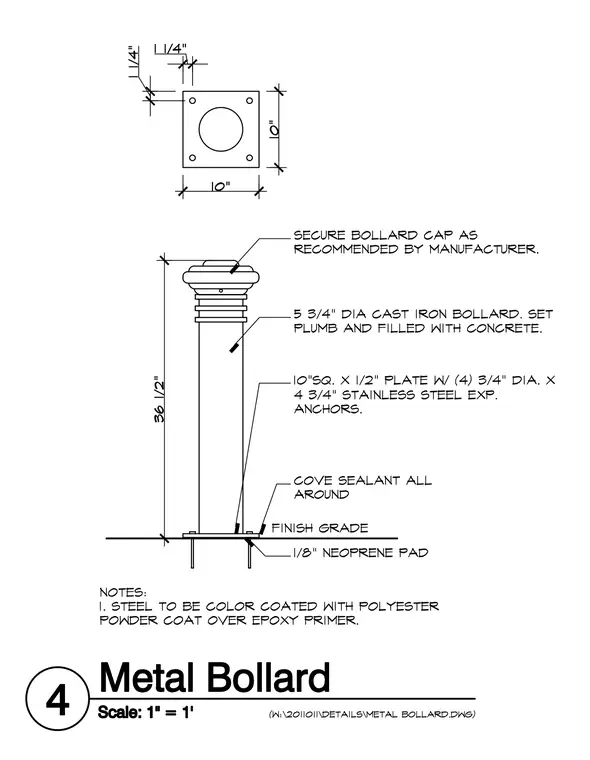

A five and three-quarter inch diameter cast iron bollard stands thirty-six and one-half inches tall above finish grade and is filled with concrete. The top features a secured bollard cap installed per manufacturer recommendations. The base consists of a ten-inch square by one-half-inch steel plate secured with four three-quarter-inch diameter by four and three-quarter-inch stainless steel expansion anchors. A one-eighth-inch neoprene pad sits beneath the base plate at finish grade, surrounded by a cove sealant all around. Steel components are color coated with polyester powder coat over epoxy primer.
