Architectural · A-BZ6EN

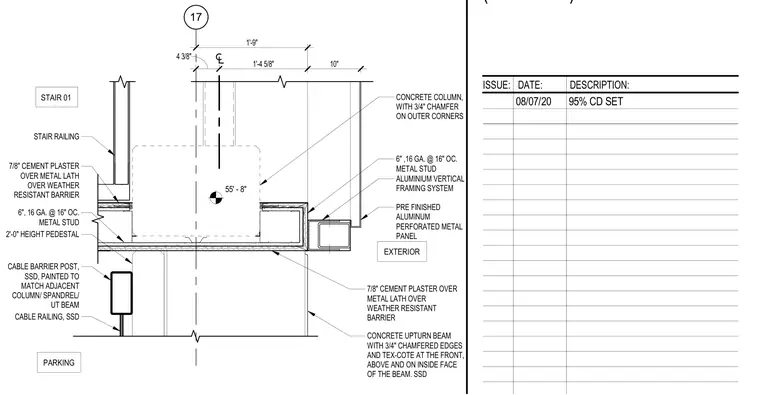

Stair Edge and Cable Railing Plan Detail at Concrete Column

Materials

Concrete Cold-formed Steel Timber / Wood Aluminum Metal (misc.)EIFS / Plaster / Stucco

Elements

Columns Beams Facades / Cladding Stairs Railings / Guards Waterproofing / Flashing

About this detail

A stair edge and exterior perimeter condition intersects a concrete column and upturn beam. The structural support consists of a concrete column featuring three-quarter inch chamfered outer corners and a concrete upturn beam with chamfered edges coated with Tex-Cote on the front, top, and inside faces. The exterior facade incorporates an aluminum vertical framing system supporting pre-finished aluminum perforated metal panels. Wall assemblies consist of six-inch sixteen-gauge metal studs spaced at sixteen inches on center, finished with seven-eighth-inch cement plaster over metal lath and a weather-resistant barrier. A stair railing with a cable barrier post is integrated at the stair edge alongside a two-foot-high pedestal.
