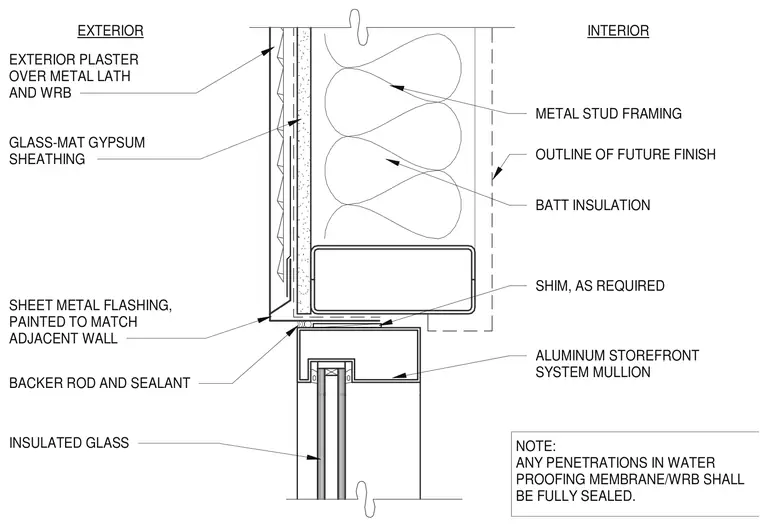

An aluminum storefront system mullion meets the head of a framed wall assembly composed of cold-formed metal stud framing and glass-mat gypsum sheathing. The exterior features plaster over metal lath and a weather-resistive barrier, transitioning to the storefront frame via a painted sheet metal flashing. Shims are placed as required between the framing and the storefront head member, with a backer rod and sealant joint sealing the exterior gap. Batt insulation fills the metal stud cavity behind an outline of future interior finish.
BATT INSULATION METAL STUD FRAMING SHEET METAL FLASHING, PAINTED TO MATCH ADJACENT WALL SHIM, AS REQUIRED BACKER ROD AND SEALANT OUTLINE OF FUTURE FINISH NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED. INSULATED GLASS ALUMINUM STOREFRONT SYSTEM MULLION EXTERIOR PLASTER OVER METAL LATH AND WRB GLASS-MAT GYPSUM SHEATHING INTERIOR EXTERIOR
