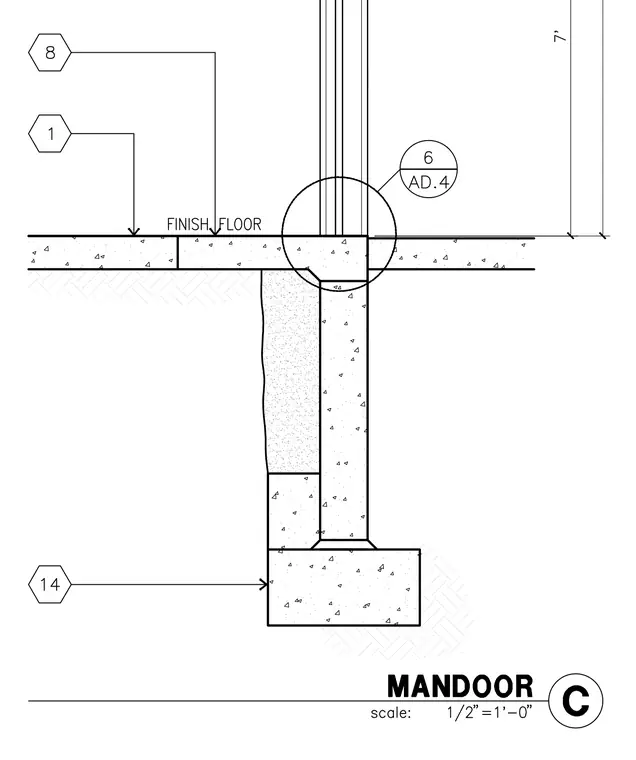

A concrete foundation wall supports a concrete floor slab and a door threshold assembly. The finish floor level is marked at the top of the slab, with a vertical clearance dimension extending upward. Detail references indicate connection points to adjacent architectural elements.
