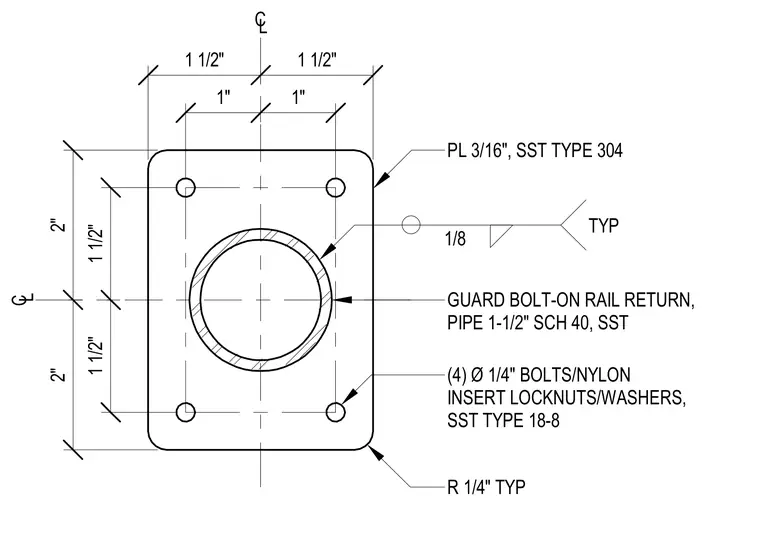

A 1-1/2 inch schedule 40 stainless steel pipe connects to a Type 304 stainless steel base plate measuring 3/16 inches thick with typical 1/4 inch corner radii. The pipe is welded to the plate with a 1/8 inch fillet weld. The assembly is secured using four 1/4 inch diameter stainless steel Type 18-8 bolts equipped with nylon insert lock nuts and washers.
1/8 TYP PL 3/16", SST TYPE 304 GUARD BOLT-ON RAIL RETURN, PIPE 1-1/2" SCH 40, SST (4) Ø 1/4" BOLTS/NYLON INSERT LOCKNUTS/WASHERS, SST TYPE 18-8 1" 1" 1 1/2" 1 1/2" 2" 2" 1 1/2" 1 1/2" R 1/4" TYP C L C L
