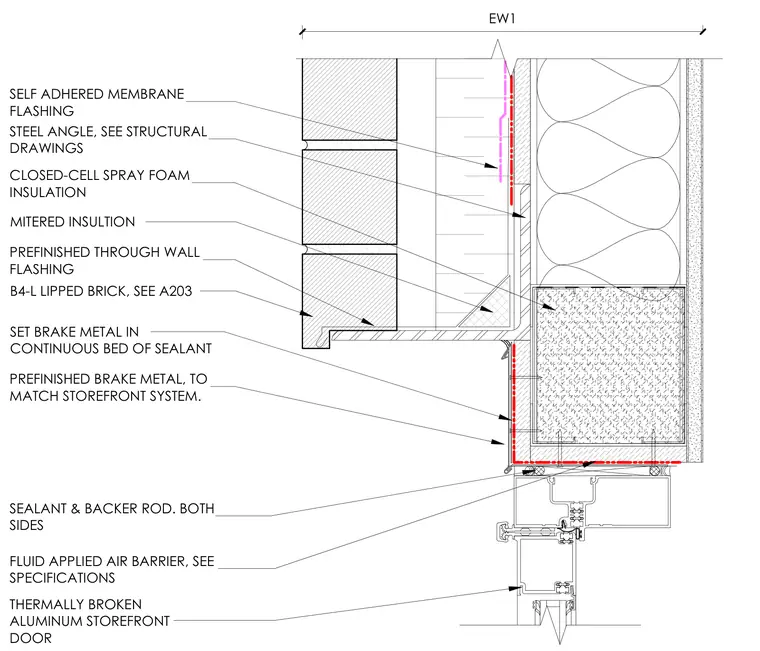

A thermally broken aluminum storefront door head interfaces with a brick masonry veneer supported by a structural steel angle. Self-adhered membrane flashing and prefinished through-wall flashing direct moisture outward above the opening. Closed-cell spray foam insulation fills the cavity alongside mitered insulation behind a prefinished brake metal trim piece set in a continuous bed of sealant. A fluid-applied air barrier coats the backup wall, and sealant with backer rod seals the joint on both sides above the horizontal aluminum mullion.
EW1 B4-L LIPPED BRICK, SEE A203 PREFINISHED THROUGH WALL FLASHING SELF ADHERED MEMBRANE FLASHING STEEL ANGLE, SEE STRUCTURAL DRAWINGS CLOSED-CELL SPRAY FOAM INSULATION MITERED INSULTION PREFINISHED BRAKE METAL, TO MATCH STOREFRONT SYSTEM. SET BRAKE METAL IN CONTINUOUS BED OF SEALANT FLUID APPLIED AIR BARRIER, SEE SPECIFICATIONS SEALANT & BACKER ROD. BOTH SIDES THERMALLY BROKEN ALUMINUM STOREFRONT DOOR
