Architectural · A-BXZKN

Flush Frame Exterior Door Jamb at Metal Panel Wall

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Doors Facades / Cladding Waterproofing / Flashing Insulation Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

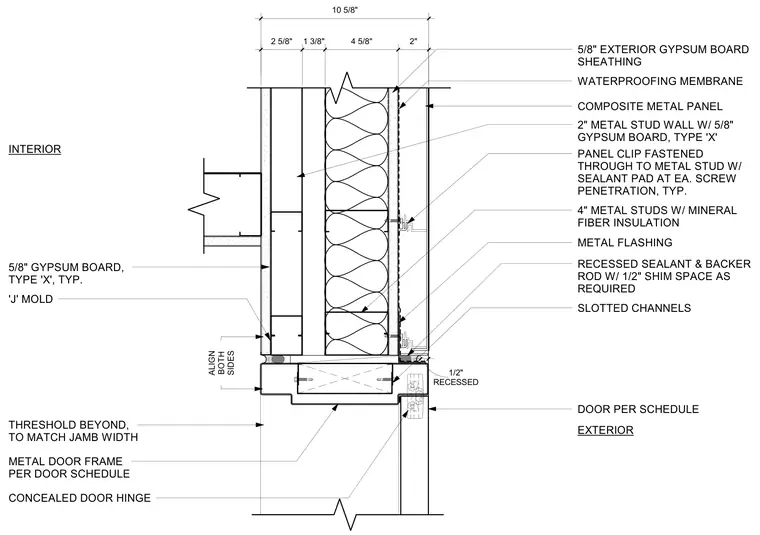

The assembly features a recessed metal door frame per the door schedule set within a metal stud wall, with a threshold extending beyond to match the jamb width and a concealed door hinge. The exterior side consists of composite metal panels over a waterproofing membrane, five-eighths-inch exterior gypsum board sheathing, and four-inch metal studs with mineral fiber insulation. Panel clips are fastened through to the metal studs with sealant pads at each screw penetration typically, alongside recessed sealant and backer rods with a one-half-inch shim space and slotted channels as required. The interior features a two-inch metal stud wall with five-eighths-inch Type X gypsum board, finished with a J-mold detail.
