Galvanized Steel Pipe Handrail at Grating

Materials

Elements

About this detail

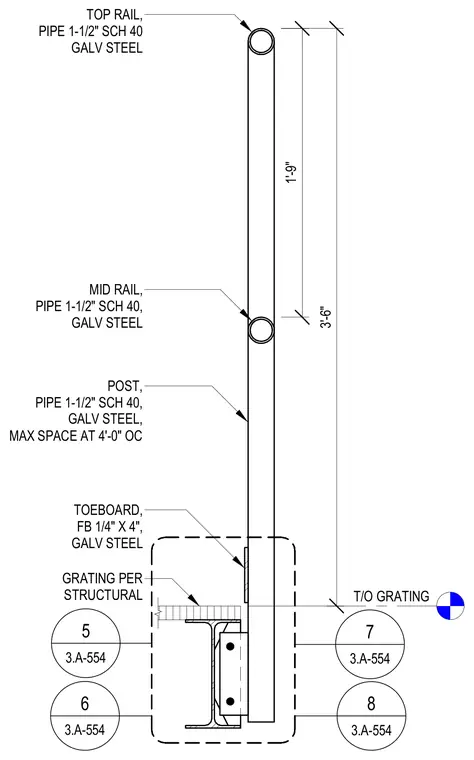

The assembly consists of a galvanized steel pipe handrail mounted adjacent to steel grating supported by structural framing. The top rail and mid rail are constructed from one-and-a-half-inch schedule forty galvanized steel pipe, with the top rail positioned at three feet six inches and the mid rail centered at one foot nine inches above the grating. The vertical posts are also one-and-a-half-inch schedule forty galvanized steel pipe spaced at a maximum of four feet zero inches on center. A quarter-inch by four-inch flat bar galvanized steel toeboard is attached at the base of the railing above the grating level.
