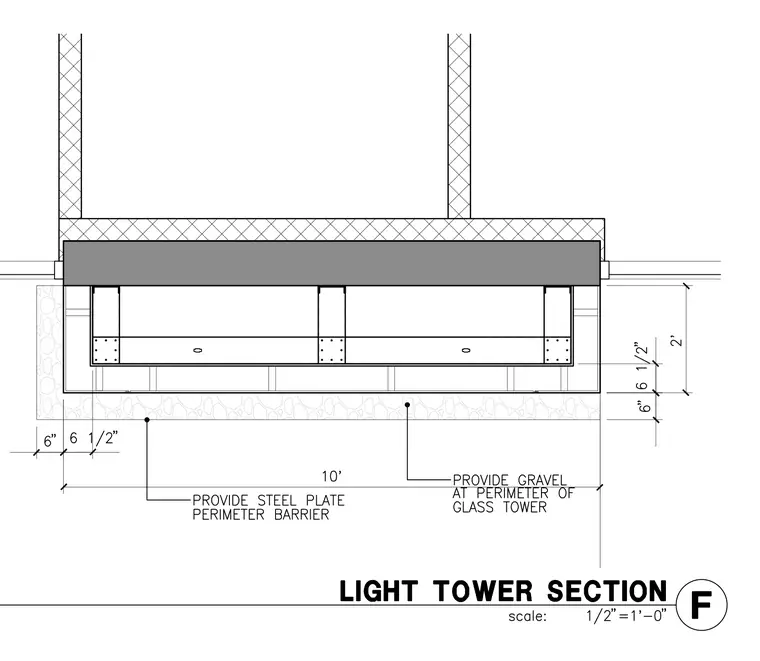

This light tower section details the structural framing and perimeter conditions of a tower structure. A steel plate perimeter barrier is provided around the base with specified dimensions. Gravel is placed at the perimeter of the glass tower on top of the foundation assembly.
