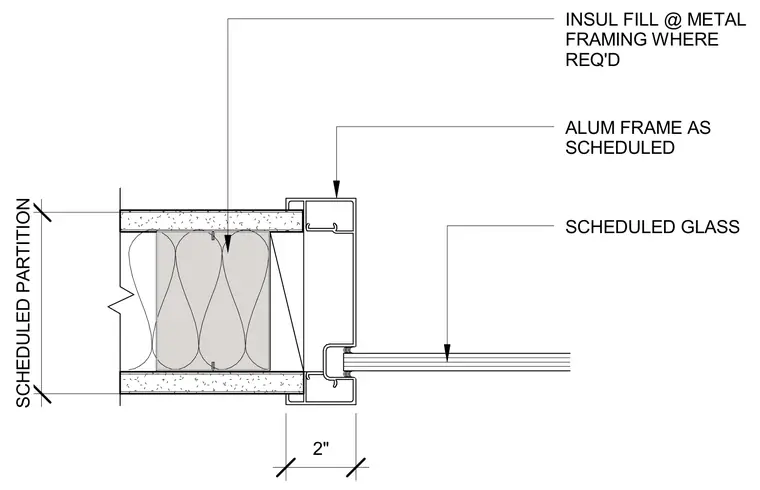

Scheduled glass is retained within an aluminum frame that abuts a scheduled metal framing partition. Two inches of insulation fill is included within the metal framing cavity where required. The partition assembly finishes flush with the aluminum window frame edge.
SCHEDULED GLASS ALUM FRAME AS SCHEDULED SCHEDULED PARTITION 2" INSUL FILL @ METAL FRAMING WHERE REQ'D
