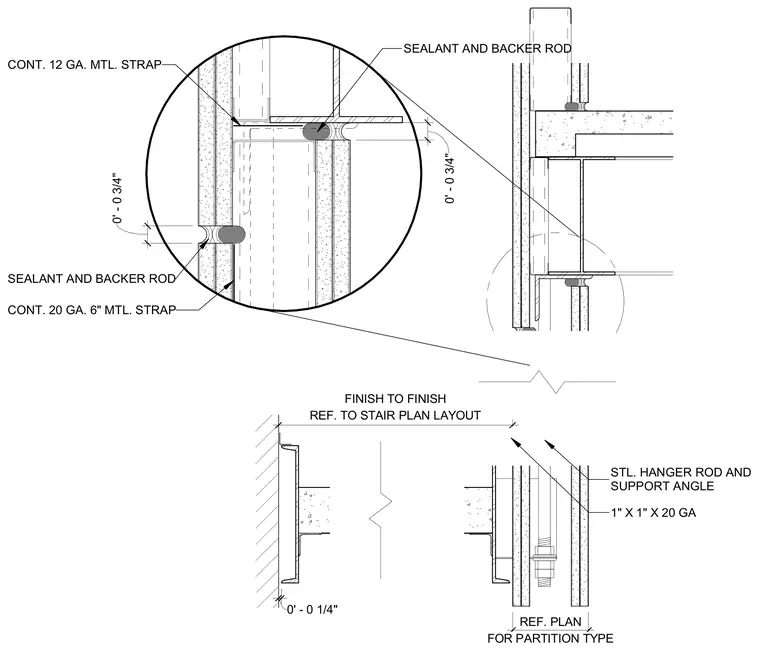

An intermediate stair landing assembly is supported by a steel hanger rod and a 1 inch by 1 inch by 20 gauge support angle referenced to the stair plan layout. Continuous 12 gauge metal straps and continuous 20 gauge 6-inch metal straps tie the partition framing into the assembly. Sealant and backer rod are detailed at the joints between the stair landing edge and the surrounding partitions.
0' - 0 1/4" STL. HANGER ROD AND SUPPORT ANGLE 1" X 1" X 20 GA REF. TO STAIR PLAN LAYOUT FINISH TO FINISH FOR PARTITION TYPE REF. PLAN 0' - 0 3/4" CONT. 20 GA. 6" MTL. STRAP SEALANT AND BACKER ROD SEALANT AND BACKER ROD CONT. 12 GA. MTL. STRAP 0' - 0 3/4"
