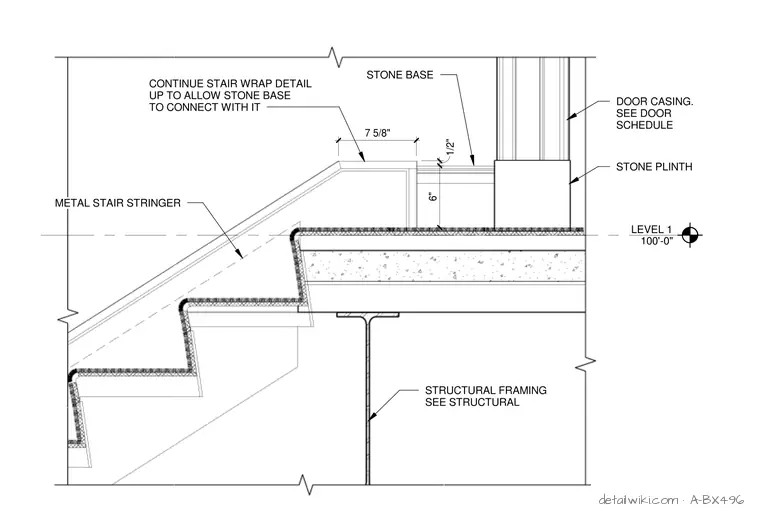

A-BX496 — Finished Stair Landing At Level 1

Architectural · A-BX496

Finished Stair Landing At Level 1

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A-562
Discipline: Architectural

Materials

Metal (misc.)Steel Stone

Elements

Doors Floors / Slabs Millwork / Casework Stairs

Text on the drawing

LEVEL 1 100'-0" CONTINUE STAIR WRAP DETAIL UP TO ALLOW STONE BASE TO CONNECT WITH IT 7 5/8" 1/2" 6" STONE PLINTH DOOR CASING. SEE DOOR SCHEDULE STRUCTURAL FRAMING SEE STRUCTURAL METAL STAIR STRINGER STONE BASE
