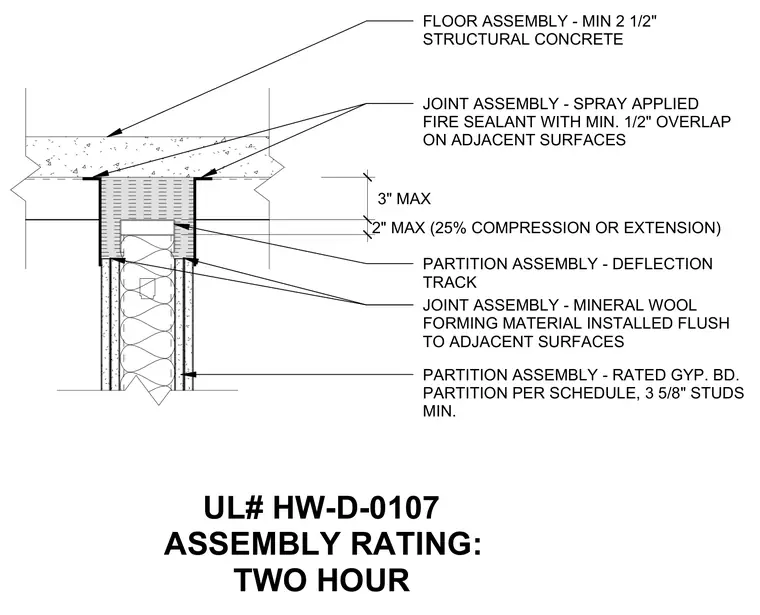

A rated gypsum board partition terminates below a structural concrete floor slab with a deflection track providing up to two inches of maximum movement. Mineral wool forming material is installed flush within the joint space and sealed with a spray-applied fire sealant providing a minimum one-half inch overlap onto adjacent surfaces. The assembly maintains a two-hour fire rating under UL designation HW-D-0107, utilizing minimum three and five-eighths inch studs per schedule.
JOINT ASSEMBLY - SPRAY APPLIED FIRE SEALANT WITH MIN. 1/2" OVERLAP ON ADJACENT SURFACES JOINT ASSEMBLY - MINERAL WOOL FORMING MATERIAL INSTALLED FLUSH TO ADJACENT SURFACES PARTITION ASSEMBLY - RATED GYP. BD. PARTITION PER SCHEDULE, 3 5/8" STUDS MIN. UL# HW-D-0107 ASSEMBLY RATING: TWO HOUR PARTITION ASSEMBLY - DEFLECTION TRACK FLOOR ASSEMBLY - MIN 2 1/2" STRUCTURAL CONCRETE 3" MAX 2" MAX (25% COMPRESSION OR EXTENSION)
