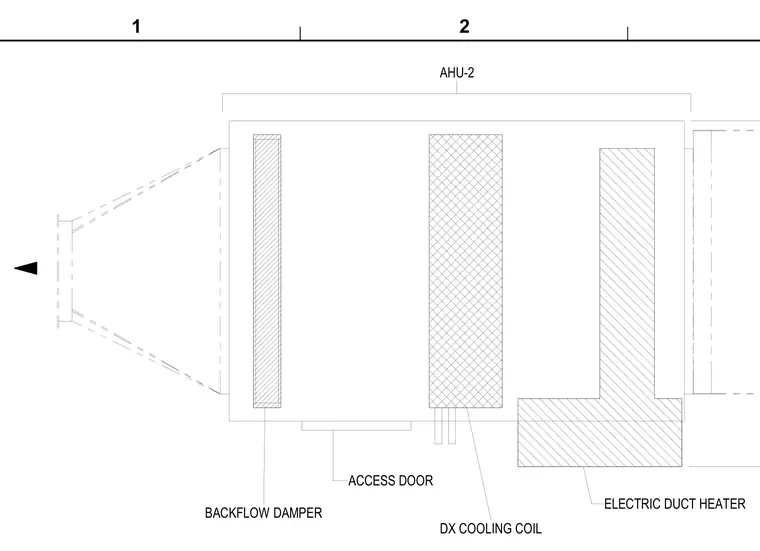

An air handling unit designated as AHU-2 integrates an electric duct heater, a direct expansion cooling coil, and a backflow damper. An access door is provided on the housing for maintenance and inspection of the internal components.
