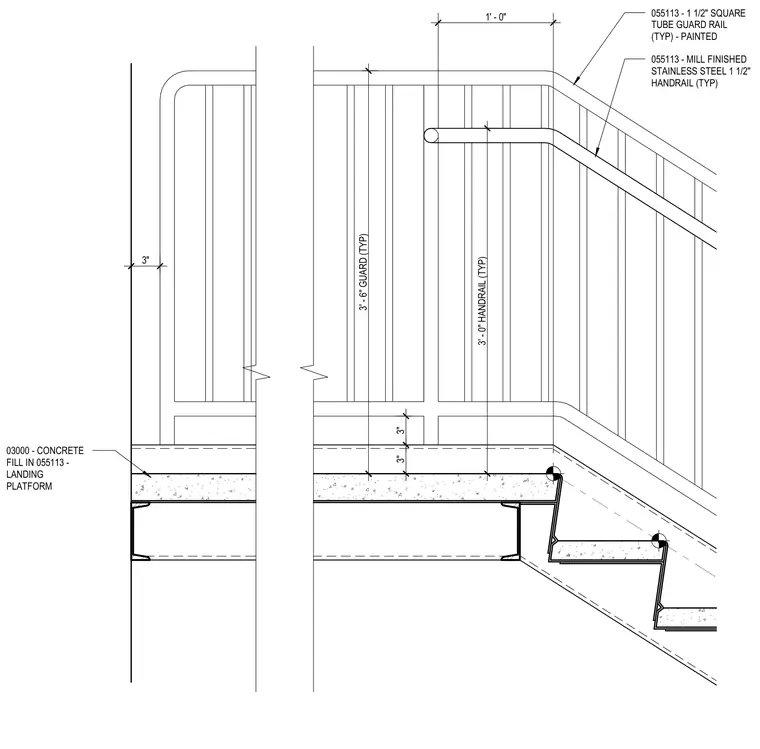

A concrete fill landing platform and stair assembly integrates a painted 1 1/2 inch square tube guard rail and a mill-finished stainless steel 1 1/2 inch handrail. The guard rail extends to a height of 3 feet 6 inches typically, while the handrail is positioned at 3 feet 0 inches typically. Concrete fill is placed over the metal landing platform and stair pans.
3" 3' - 6" GUARD (TYP) 3' - 0" HANDRAIL (TYP) 3" 03000 - CONCRETE FILL IN 055113 - LANDING PLATFORM 3" 1' - 0" 055113 - 1 1/2" SQUARE TUBE GUARD RAIL (TYP) - PAINTED 055113 - MILL FINISHED STAINLESS STEEL 1 1/2" HANDRAIL (TYP)
