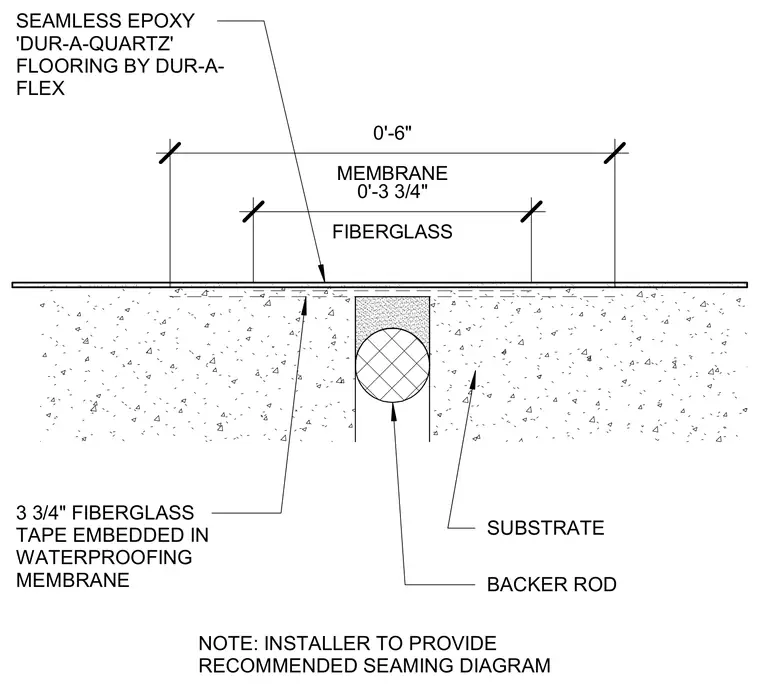

A control joint assembly within a seamless epoxy flooring system applied over a concrete substrate. A foam backer rod is installed inside the joint slot, topped with a waterproofing membrane and a three-and-three-quarter-inch-wide fiberglass tape embedded directly into the membrane. The top finish consists of a seamless epoxy quartz flooring system. Dimensions indicate a total assembly width spanning six inches with a three-and-three-quarter-inch membrane zone. An installation note requires the installer to provide a recommended seaming diagram.
FIBERGLASS 0'-3 3/4" MEMBRANE 0'-6" SEAMLESS EPOXY 'DUR-A-QUARTZ' FLOORING BY DUR-A- FLEX 3 3/4" FIBERGLASS TAPE EMBEDDED IN WATERPROOFING MEMBRANE SUBSTRATE BACKER ROD NOTE: INSTALLER TO PROVIDE RECOMMENDED SEAMING DIAGRAM
