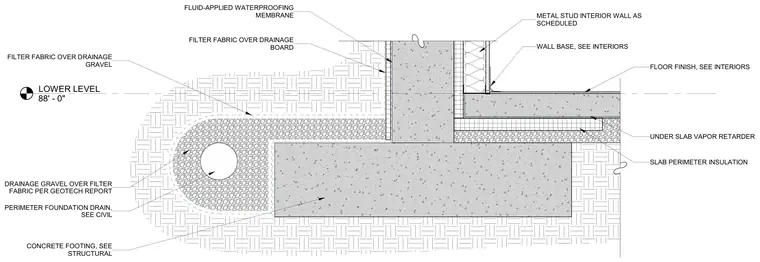

A concrete footing supports the foundation wall, with fluid-applied waterproofing membrane and filter fabric over drainage board protecting the exterior face. A perimeter foundation drain sits within drainage gravel wrapped in filter fabric per the geotechnical report. On the interior, slab perimeter insulation lines the slab edge above an under-slab vapor retarder, while a metal stud interior wall connects above the floor finish and wall base.
LOWER LEVEL 88' - 0" PERIMETER FOUNDATION DRAIN, SEE CIVIL CONCRETE FOOTING, SEE STRUCTURAL FILTER FABRIC OVER DRAINAGE GRAVEL DRAINAGE GRAVEL OVER FILTER FABRIC PER GEOTECH REPORT FILTER FABRIC OVER DRAINAGE BOARD FLUID-APPLIED WATERPROOFING MEMBRANE SLAB PERIMETER INSULATION FLOOR FINISH, SEE INTERIORS METAL STUD INTERIOR WALL AS SCHEDULED UNDER SLAB VAPOR RETARDER WALL BASE, SEE INTERIORS
