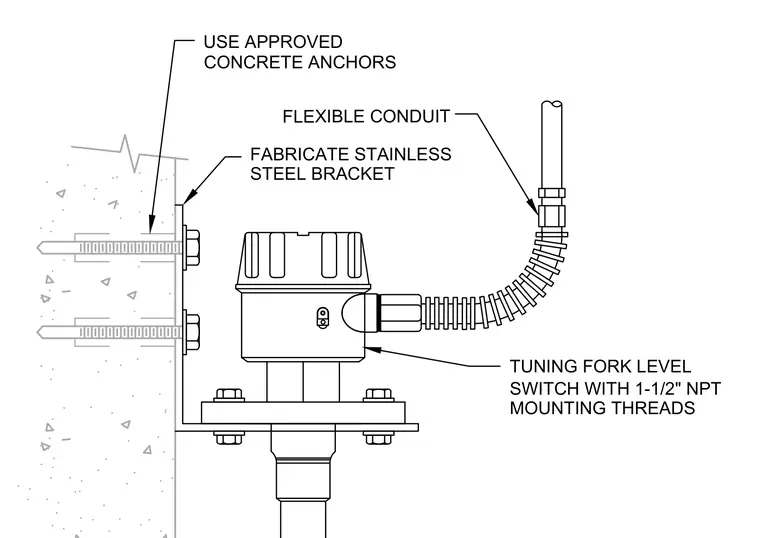

A tuning fork level switch with one-and-a-half-inch National Pipe Thread mounting threads connects to a fabricated stainless steel bracket. The bracket is secured to a concrete wall using approved concrete anchors. Flexible conduit attaches to the level switch housing for electrical wiring protection.
TUNING FORK LEVEL SWITCH WITH 1-1/2" NPT MOUNTING THREADS FABRICATE STAINLESS STEEL BRACKET FLEXIBLE CONDUIT USE APPROVED CONCRETE ANCHORS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
