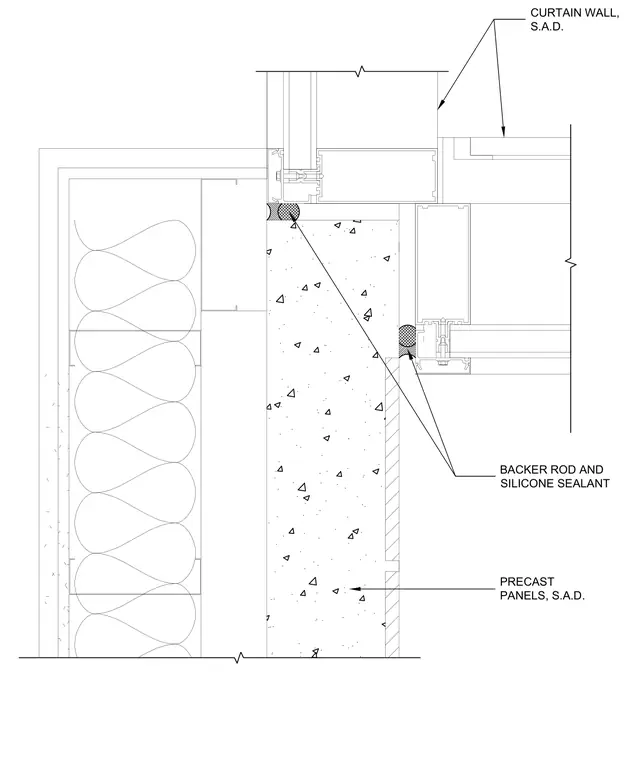

The curtain wall system connects directly to the precast concrete wall panels, sealed with a backer rod and silicone sealant at the joint interface. The assembly maintains weatherproofing and thermal separation between the glazing system and the concrete structure.
BACKER ROD AND SILICONE SEALANT PRECAST PANELS, S.A.D. CURTAIN WALL, S.A.D.
