A-BVJZP — Steel Canopy Ridge and Curtain Wall Horizontal Mullion Connection

Architectural · A-BVJZP

Steel Canopy Ridge and Curtain Wall Horizontal Mullion Connection

Materials

Elements

Walls Curtain Walls Roofs Canopies Connections / Plates

About this detail

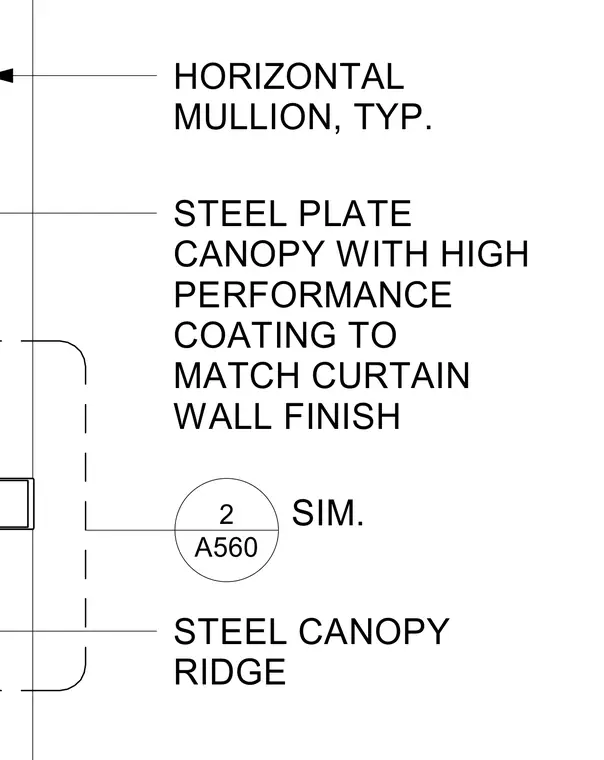

A steel canopy ridge assembly intersects a typical horizontal mullion of a curtain wall system. The steel plate canopy features a high-performance coating matching the adjacent curtain wall finish. A reference bubble indicates a similar detail designated as 2/A560.

HORIZONTAL MULLION, TYP. STEEL CANOPY RIDGE STEEL PLATE CANOPY WITH HIGH PERFORMANCE COATING TO MATCH CURTAIN WALL FINISH A560 2 SIM.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
