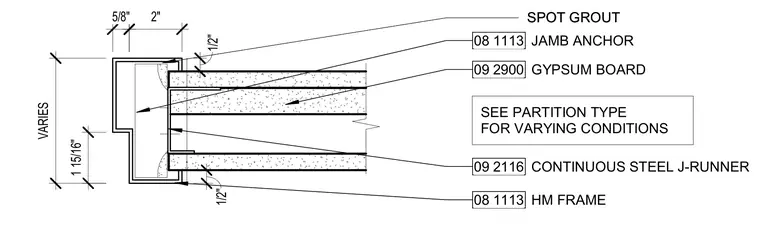

A hollow metal frame connects to a partition assembly featuring gypsum board fastened to a continuous steel J-runner. Jamb anchors secure the frame while spot grout fills the interior space at varying conditions. The partition construction adjusts per the specific partition type schedule.
VARIES 2" 5/8" SEE PARTITION TYPE FOR VARYING CONDITIONS SPOT GROUT 08 1113 HM FRAME 09 2900 GYPSUM BOARD 09 2116 CONTINUOUS STEEL J-RUNNER 08 1113 JAMB ANCHOR 1 15/16" 1/2" 1/2" SPOT GROUT
