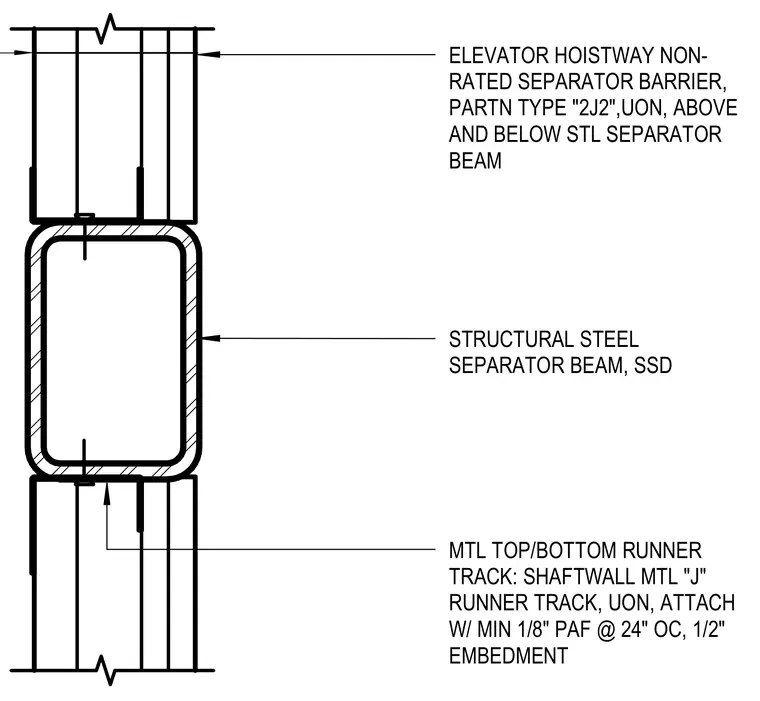

An elevator hoistway non-rated separator barrier partition type "2J2" connects above and below a structural steel separator beam. The shaftwall metal "J" runner tracks attach to the steel beam with minimum one-eighth-inch powder-actuated fasteners spaced at twenty-four inches on center with one-half-inch embedment.
ELEVATOR HOISTWAY NON- RATED SEPARATOR BARRIER, PARTN TYPE "2J2",UON, ABOVE AND BELOW STL SEPARATOR BEAM MTL TOP/BOTTOM RUNNER TRACK: SHAFTWALL MTL "J" RUNNER TRACK, UON, ATTACH W/ MIN 1/8" PAF @ 24" OC, 1/2" EMBEDMENT STRUCTURAL STEEL SEPARATOR BEAM, SSD
