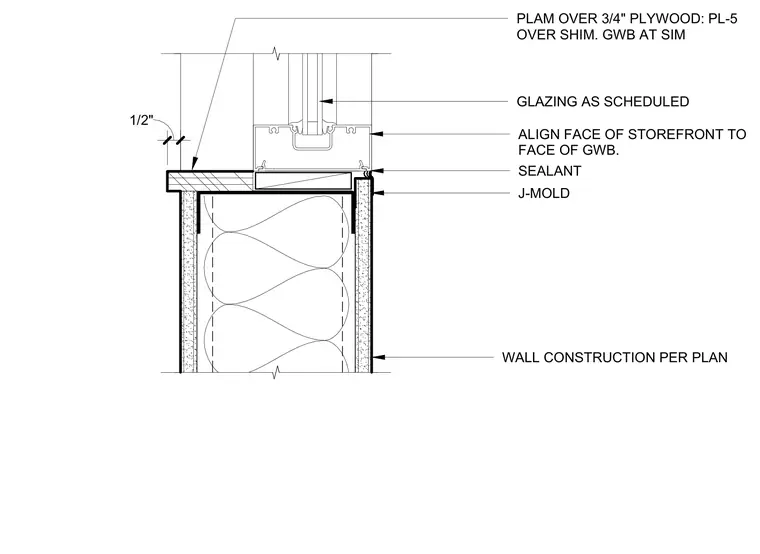

The storefront framing aligns with the face of the gypsum wallboard. Plastic laminate PL-5 is applied over three-quarter-inch plywood set on shims. A J-mold trims the gypsum board edge, and sealant is applied at the aluminum frame junction. Wall construction and glazing are provided per plan.
GLAZING AS SCHEDULED WALL CONSTRUCTION PER PLAN SEALANT J-MOLD ALIGN FACE OF STOREFRONT TO FACE OF GWB. PLAM OVER 3/4" PLYWOOD: PL-5 OVER SHIM. GWB AT SIM 1/2"
