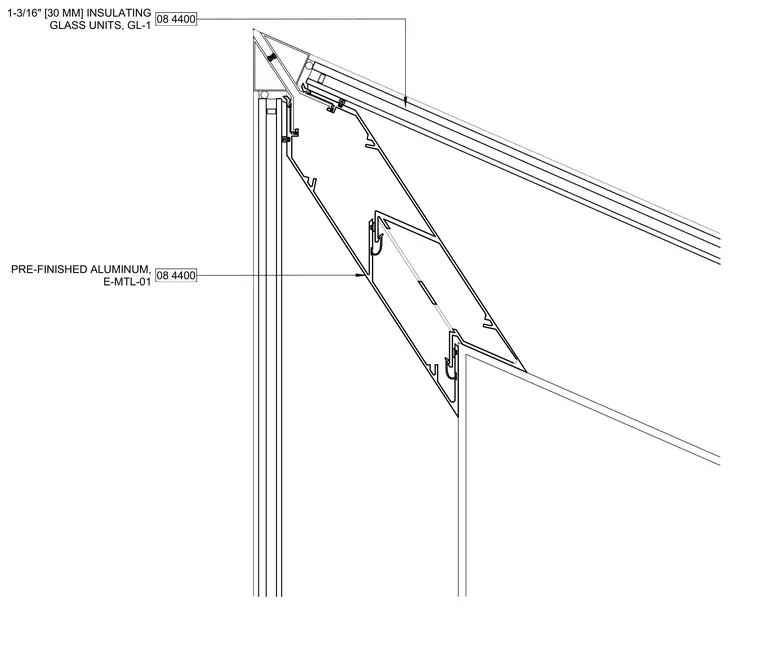

This plan detail shows an exterior corner mullion assembly for a glazed curtain wall system. The junction utilizes pre-finished aluminum extrusions designated as E-MTL-01 to form the structural corner framing. One-and-three-sixteenth-inch insulating glass units, designated as GL-1, are glazed into the framing profiles with continuous gaskets. The assembly meets at a 90-degree corner with matching extruded aluminum components.
08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01
