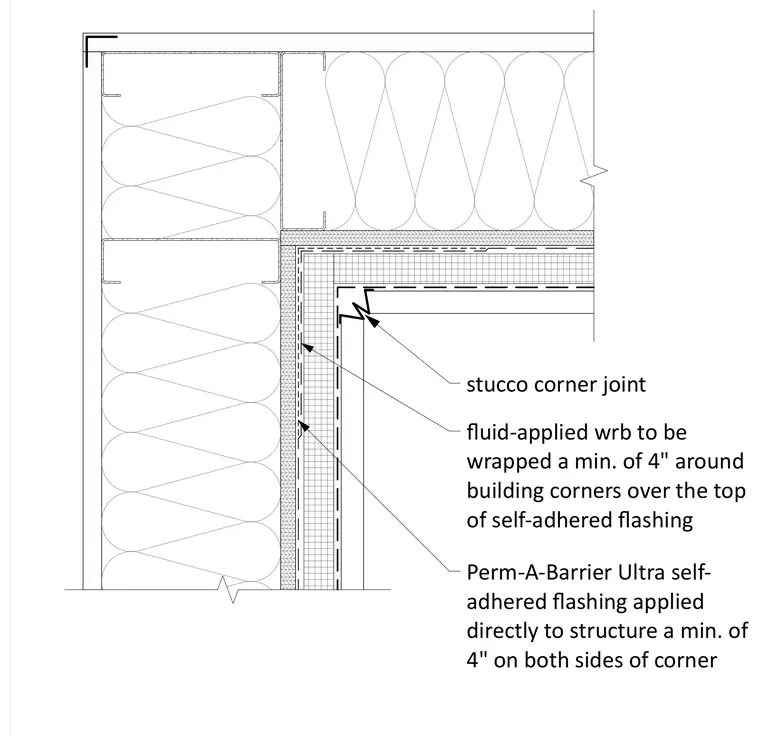

Perm-A-Barrier Ultra self-adhered flashing is applied directly to the structure a minimum of 4 inches on both sides of the corner. A fluid-applied weather-resistive barrier is wrapped a minimum of 4 inches around building corners over the top of the self-adhered flashing. A stucco corner joint finishes the interior corner junction of the wall assembly.
Perm-A-Barrier Ultra self- adhered flashing applied directly to structure a min. of 4" on both sides of corner fluid-applied wrb to be wrapped a min. of 4" around building corners over the top of self-adhered flashing stucco corner joint
