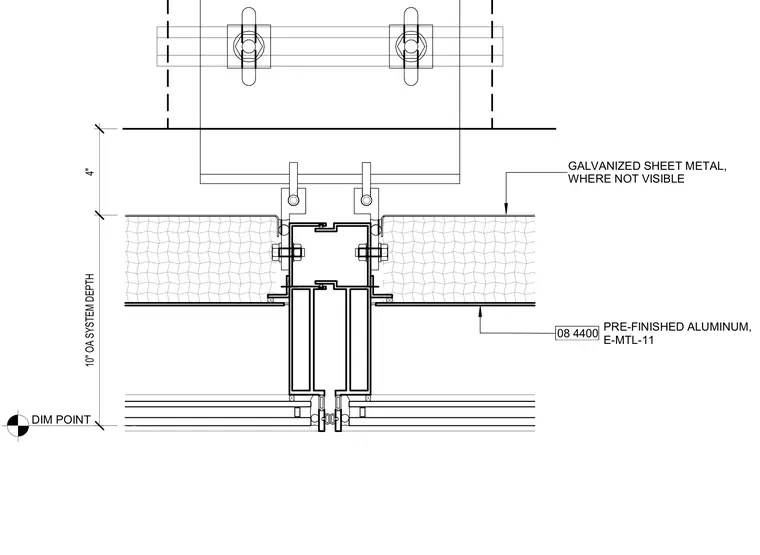

A ten-inch overall system depth at a typical spandrel condition. The assembly features pre-finished aluminum elements combined with galvanized sheet metal installed where not visible. Dimension points reference the exterior face and system depth across the aluminum profiles.
10" OA SYSTEM DEPTH 4" DIM POINT 08 4400 PRE-FINISHED ALUMINUM, E-MTL-11 GALVANIZED SHEET METAL, WHERE NOT VISIBLE
