Architectural · A-BTBVX

Insulated Metal Panel Low Eave at Roof and Wall

Materials

Elements

Beams Walls Roofs Decks Insulation Drainage

About this detail

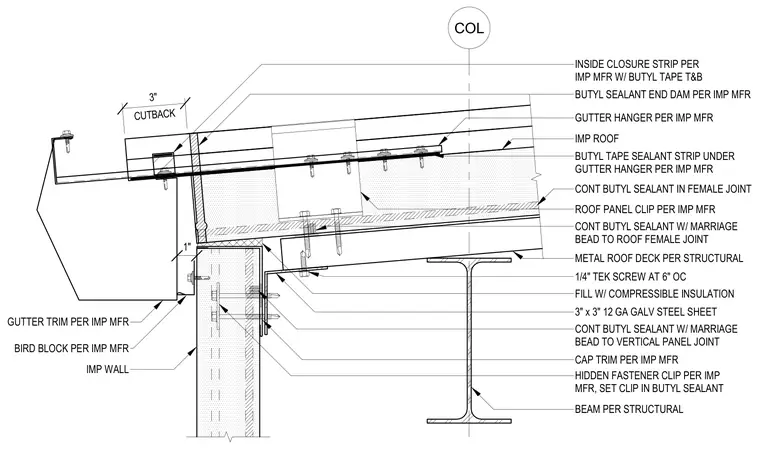

An insulated metal panel roof bears on a structural metal roof deck and steel beam, with an insulated metal panel wall terminating below the eave line. A gutter is supported by hangers over a butyl tape sealant strip, featuring a 3-inch cutback and a 1-inch clearance space. Continuous butyl sealant is applied within the female panel joints and vertical panel joints with a marriage bead. A three-inch by three-inch 12-gauge galvanized steel sheet is tied in with quarter-inch Tek screws spaced at six inches on center, and a compressible insulation strip fills the void. Concealed fastener clips set in butyl sealant secure the roof panels, while inside closure strips, end dams, bird blocks, cap trim, and gutter trim complete the weatherproof assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
