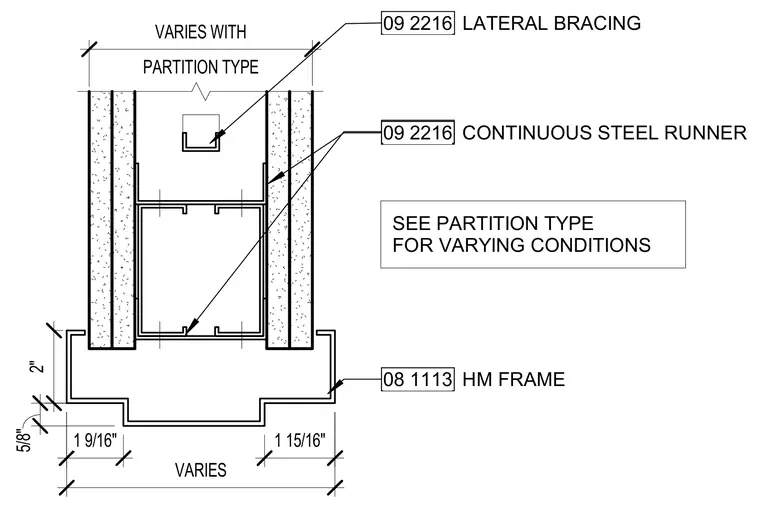

Partition head construction occurs at a hollow metal frame with continuous steel runners and lateral bracing. Conditions vary according to the specific partition type. Dimensions indicate precise offsets including one and fifteen-sixteenth inches, one and nine-sixteenth inches, two inches, and five-eighths of an inch.
1 15/16" 1 9/16" VARIES PARTITION TYPE VARIES WITH 2" 5/8" 09 2216 LATERAL BRACING 09 2216 CONTINUOUS STEEL RUNNER 09 2216 CONTINUOUS STEEL RUNNER SEE PARTITION TYPE FOR VARYING CONDITIONS 08 1113 HM FRAME
