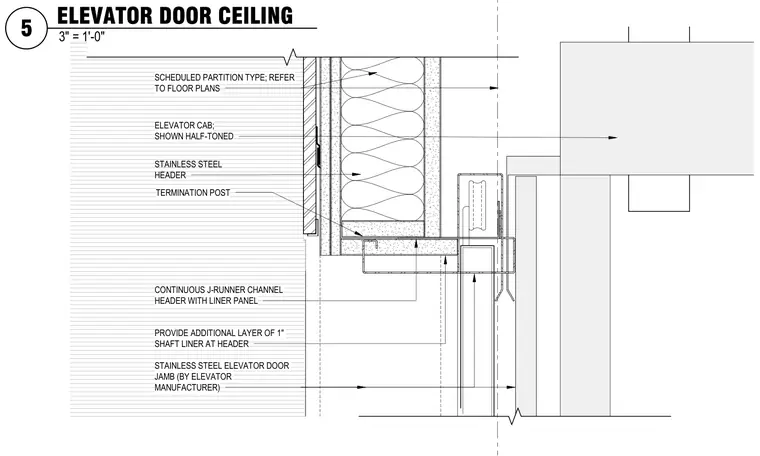

An elevator door header and ceiling interface assembly coordinates the architectural finishes with the structural shaft wall and elevator equipment. A scheduled partition type serves as the backing wall, featuring an additional layer of one-inch shaft liner at the header. A continuous J-runner channel supports a liner panel above the stainless steel header termination post. The stainless steel elevator door jamb and cab interface are provided directly by the elevator manufacturer.
SCHEDULED PARTITION TYPE; REFER TO FLOOR PLANS ELEVATOR CAB; SHOWN HALF-TONED PROVIDE ADDITIONAL LAYER OF 1" SHAFT LINER AT HEADER CONTINUOUS J-RUNNER CHANNEL HEADER WITH LINER PANEL STAINLESS STEEL ELEVATOR DOOR JAMB (BY ELEVATOR MANUFACTURER) STAINLESS STEEL HEADER TERMINATION POST 3" = 1'-0" 5 ELEVATOR DOOR CEILING
