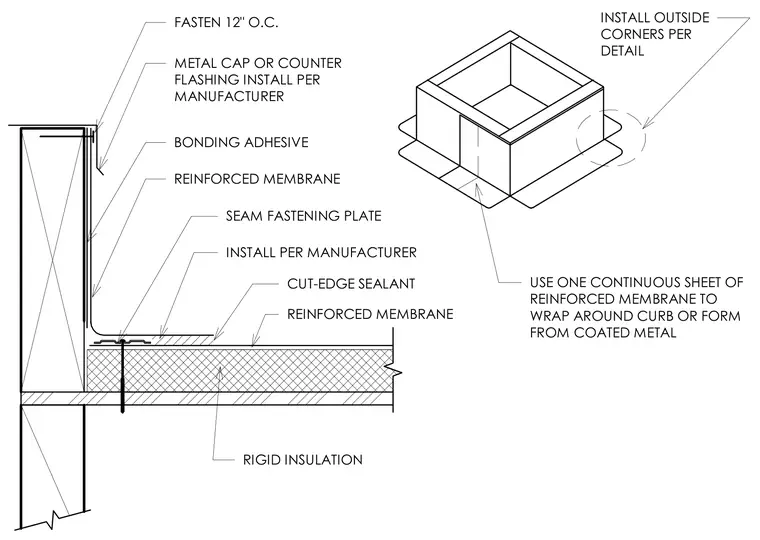

Rigid insulation supports the roof assembly beneath a continuous layer of reinforced membrane secured with seam fastening plates and bonded with adhesive. A single continuous sheet of reinforced membrane wraps upward around the curb, sealed at cut edges with sealant. A metal cap or counter-flashing is installed at the top of the curb per the manufacturer's instructions and fastened twelve inches on center.
INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL
