A removable pipe drop front cover is secured with fourteen-gauge stainless steel top and bottom hanger brackets bolted directly to the cover assembly. Drying racks positioned at pipe drops feature finished backs and connect to the vertical assembly. A four-and-one-quarter-inch dimension is provided across the base.

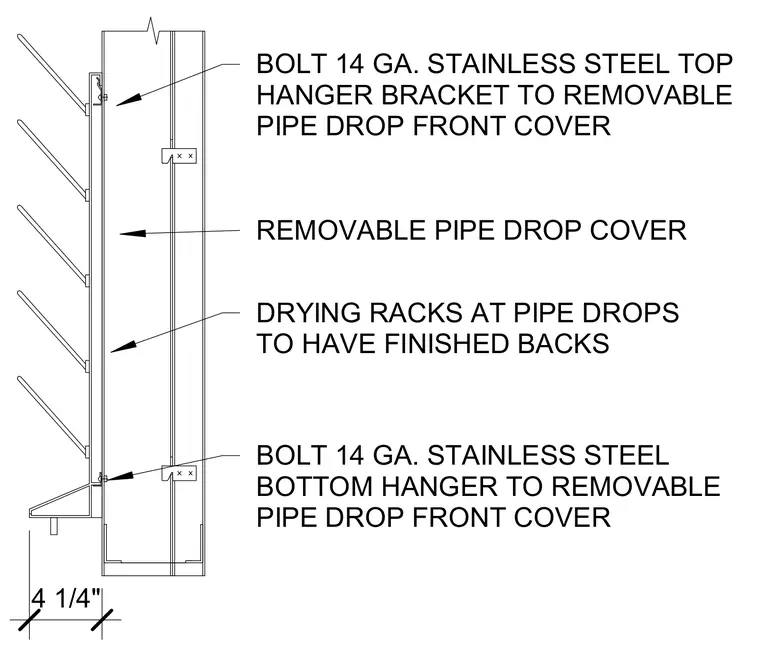

BOLT 14 GA. STAINLESS STEEL TOP HANGER BRACKET TO REMOVABLE PIPE DROP FRONT COVER REMOVABLE PIPE DROP COVER BOLT 14 GA. STAINLESS STEEL BOTTOM HANGER TO REMOVABLE PIPE DROP FRONT COVER DRYING RACKS AT PIPE DROPS TO HAVE FINISHED BACKS 4 1/4"
