Mechanical · A-BSKPG

Grille Ceiling Return Boot

Materials

Elements

About this detail

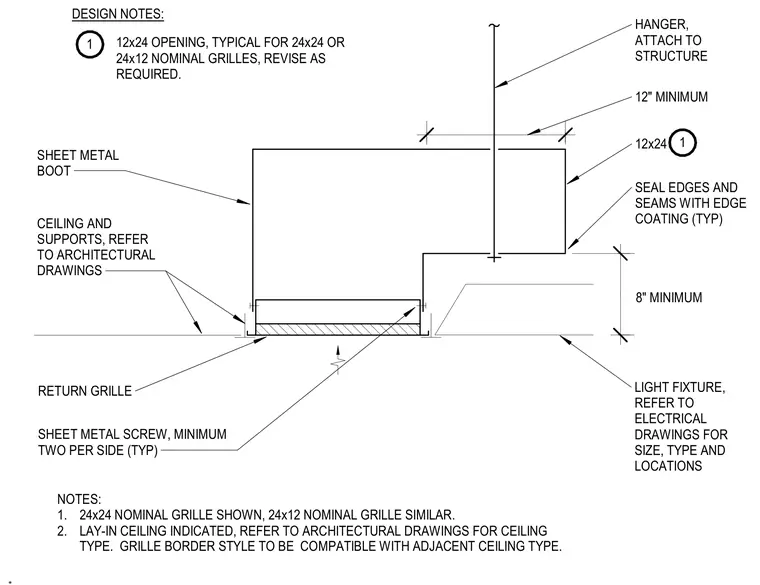

A ceiling return air boot connection features a sheet metal boot suspended from the building structure by a hanger attached with a minimum twelve-inch clearance. The assembly integrates with a lay-in ceiling system supported by framing referenced in architectural drawings, maintaining an eight-inch minimum dimension above the ceiling plane. A return grille is secured to the boot using a minimum of two sheet metal screws per side. All edges and seams are sealed with edge coating. A nearby light fixture is coordinated per electrical drawings.
