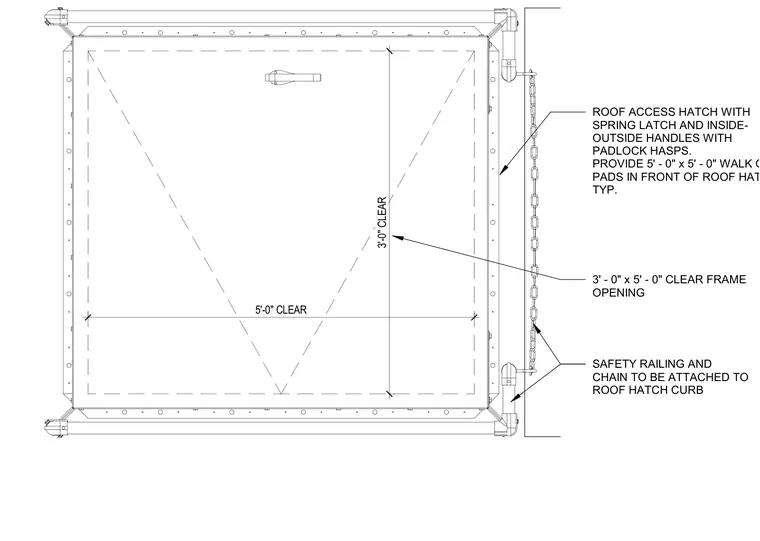

A roof access hatch features a spring latch, inside and outside handles with padlock hasps, and a three-foot by five-foot clear frame opening. A safety railing with an attached chain mounts directly to the roof hatch curb. Five-foot by five-foot walk-off pads are provided in front of the roof hatch.
5'-0" CLEAR 3'-0" CLEAR SAFETY RAILING AND CHAIN TO BE ATTACHED TO ROOF HATCH CURB ROOF ACCESS HATCH WITH SPRING LATCH AND INSIDE- OUTSIDE HANDLES WITH PADLOCK HASPS. PROVIDE 5' - 0" x 5' - 0" WALK OFF PADS IN FRONT OF ROOF HATCH, TYP. 3' - 0" x 5' - 0" CLEAR FRAME OPENING
