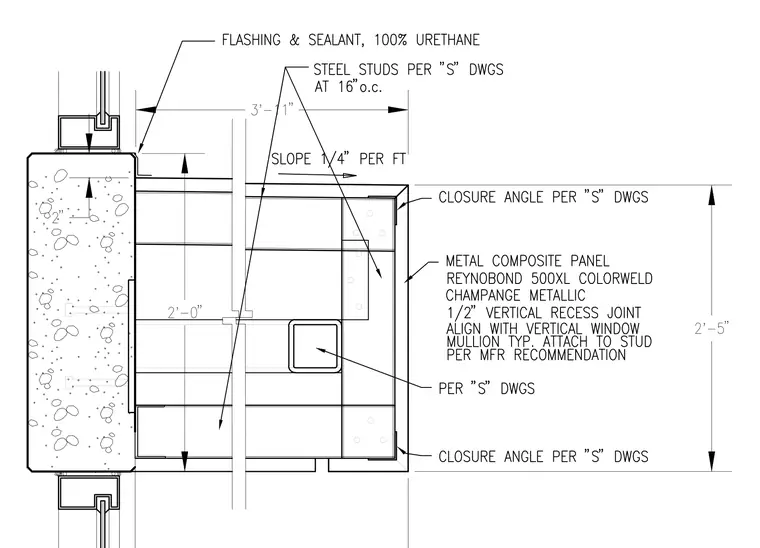

A metal composite panel assembly clads a structural steel framing system tied back to a concrete wall. Steel studs spaced at sixteen inches on center support the canopy framing, with closure angles detailed per structural drawings. The top surface of the canopy slopes at one quarter inch per foot and receives continuous flashing with one hundred percent urethane sealant. Metal composite panels feature a one half inch vertical recess joint aligned with vertical window mullions and attach to the studs per the manufacturer recommendations.
