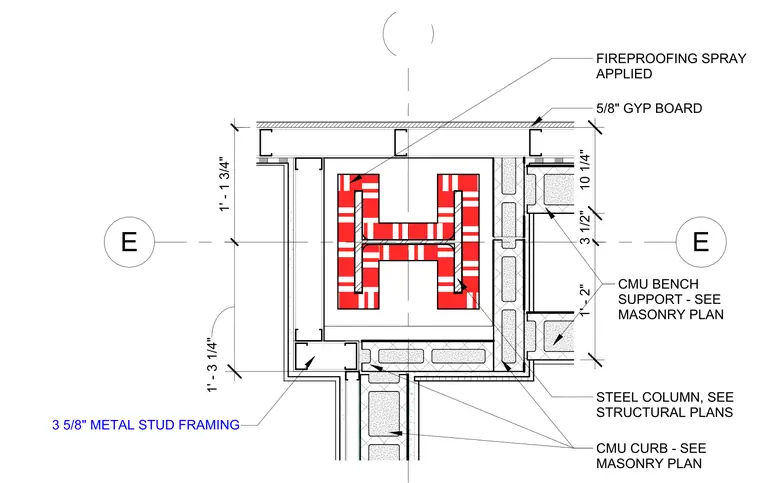

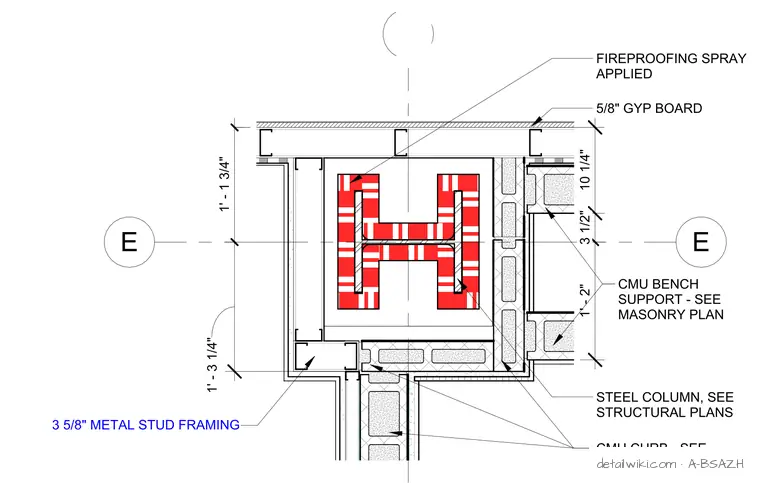

The assembly features a structural steel column centered on grid line E, finished with applied fireproofing spray. The column is enclosed by a perimeter of 3 5/8 inch metal stud framing, which is faced with 5/8 inch gypsum board. A CMU curb and CMU bench support abut the column enclosure, with specific masonry dimensions and configurations referenced to the masonry plans. The steel column size is determined by the structural plans.
