Architectural · A-BS739

Steel Stud Partition with Gypsum Wallboard

Materials

Cold-formed Steel Gypsum / Drywall Steel Timber / Wood

Elements

About this detail

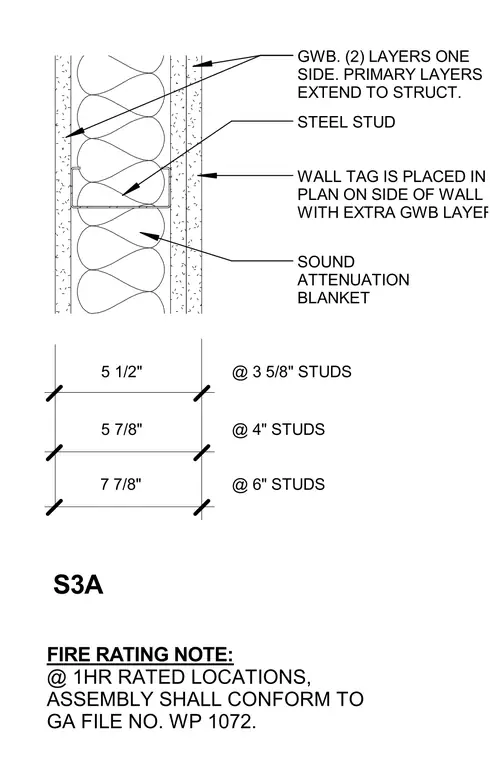

This cold-formed steel stud partition features two layers of gypsum wallboard on one side, with the primary layers extending to the structure. A sound attenuation blanket fills the stud cavity, and stud depths of three and five-eighths inches, four inches, and six inches correspond to total assembly thicknesses of five and one-half inches, five and seven-eighths inches, and seven and seven-eighths inches respectively. At one-hour rated locations, the assembly conforms to Gypsum Association file number WP 1072. The wall tag is placed on the plan on the side of the wall with the extra gypsum wallboard layer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
