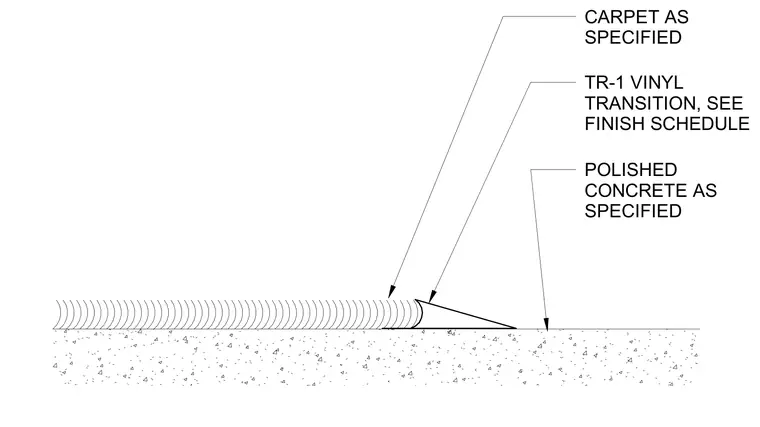

Carpet abuts polished concrete flooring with an intervening TR-1 vinyl transition strip specified in the finish schedule. The reducer molding bridges the height difference between the carpet and the concrete slab. Both flooring materials bear directly on the concrete substrate.
POLISHED CONCRETE AS SPECIFIED TR-1 VINYL TRANSITION, SEE FINISH SCHEDULE CARPET AS SPECIFIED
