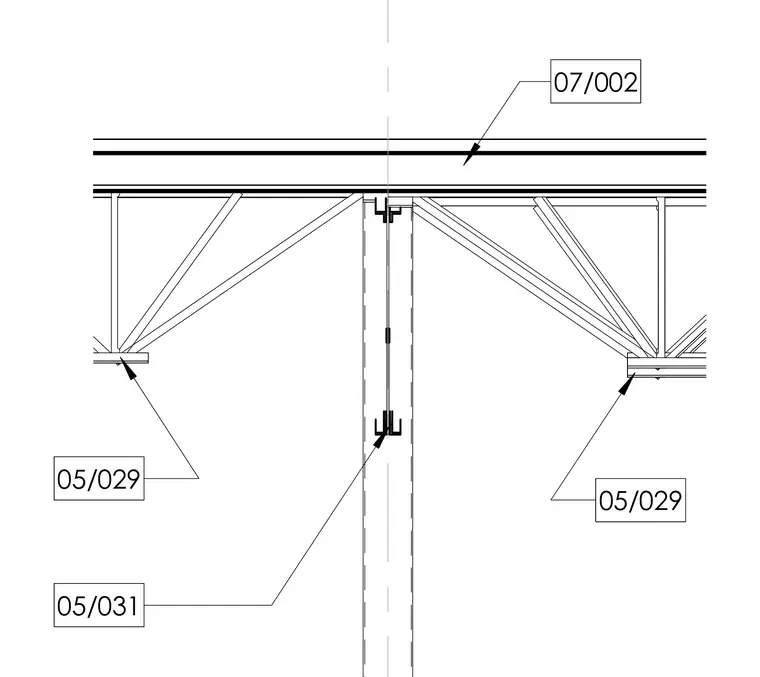

Open web steel joists frame into a vertical partition aligned with a centerline. A multi-layer roof assembly spans continuously across the top chord bearing. Sheet reference callouts 05/029 and 05/031 indicate adjoining structural connections. Sheet reference 07/002 points to the roof assembly.
