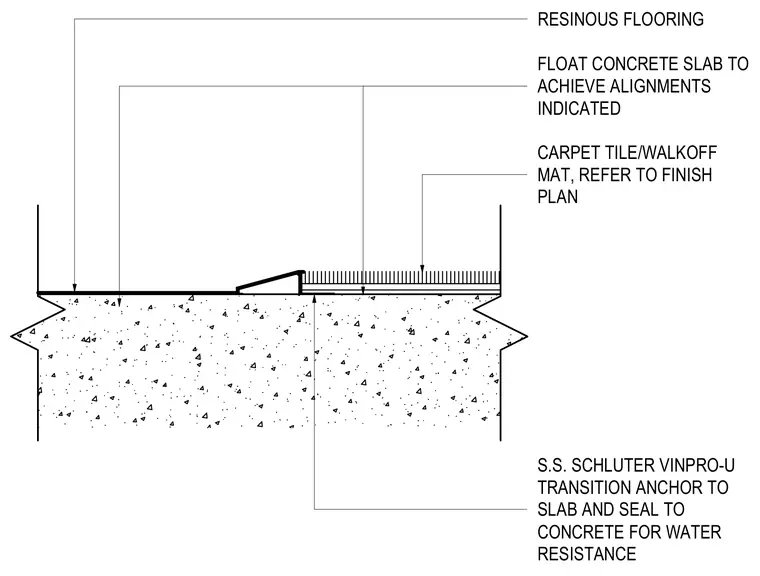

The concrete slab is floated to achieve the required finish alignments for dissimilar floor finishes. A stainless steel Schluter Vinpro-U transition anchor is secured to the concrete substrate and sealed for water resistance. Resinous flooring meets one side of the transition while carpet tile or a walk-off mat abuts the other side.
FLOAT CONCRETE SLAB TO ACHIEVE ALIGNMENTS INDICATED S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN RESINOUS FLOORING
