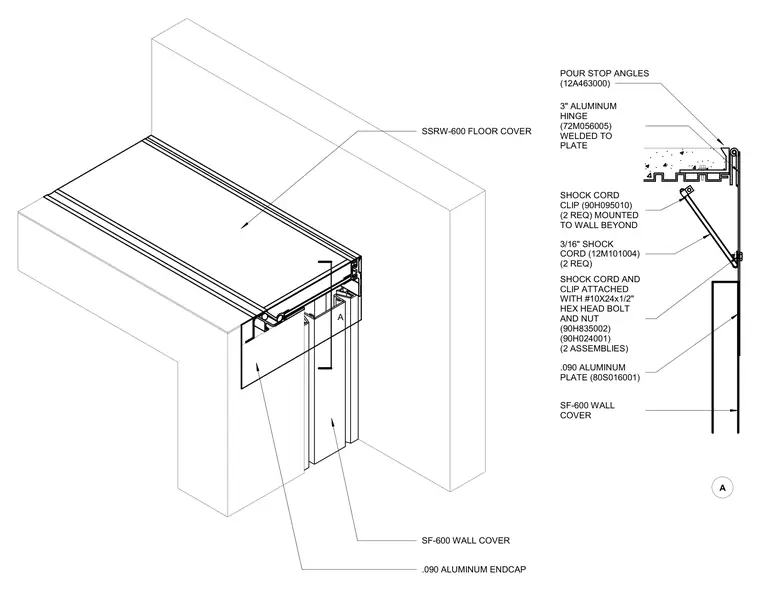

An SSRW-600 floor cover interfaces with an SF-600 wall cover and a .090-inch aluminum endcap at a building expansion joint. Pour stop angles anchor the assembly near the concrete slab edge. A 3-inch aluminum hinge is welded to the plate. Two shock cords attach to shock cord clips mounted to the wall beyond using number 10-24 by 1/2-inch hex head bolts and nuts across two assemblies. A .090-inch aluminum plate completes the wall cover section.
.090 ALUMINUM ENDCAP SF-600 WALL COVER SSRW-600 FLOOR COVER A A POUR STOP ANGLES (12A463000) 3" ALUMINUM HINGE (72M056005) WELDED TO PLATE 3/16" SHOCK CORD (12M101004) (2 REQ) SHOCK CORD CLIP (90H095010) (2 REQ) MOUNTED TO WALL BEYOND SHOCK CORD AND CLIP ATTACHED WITH #10X24x1/2" HEX HEAD BOLT AND NUT (90H835002) (90H024001) (2 ASSEMBLIES) .090 ALUMINUM PLATE (80S016001) SF-600 WALL COVER
