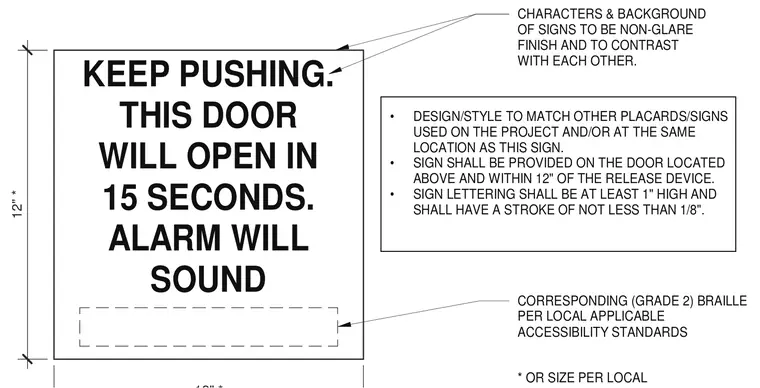

Delayed egress signage placard featuring required text reading KEEP PUSHING. THIS DOOR WILL OPEN IN 15 SECONDS. ALARM WILL SOUND. The sign includes a non-glare finish with contrasting characters and background, along with corresponding Grade 2 braille meeting local applicable accessibility standards. Lettering is specified to be at least 1 inch high with a stroke of not less than 1/8 inch. The sign is required to be positioned on the door above and within 12 inches of the release device, maintaining a design and style matching other project placards.
KEEP PUSHING. THIS DOOR WILL OPEN IN 15 SECONDS. ALARM WILL SOUND 12" * CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. CORRESPONDING (GRADE 2) BRAILLE PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS * OR SIZE PER LOCAL • DESIGN/STYLE TO MATCH OTHER PLACARDS/SIGNS USED ON THE PROJECT AND/OR AT THE SAME LOCATION AS THIS SIGN. • SIGN SHALL BE PROVIDED ON THE DOOR LOCATED ABOVE AND WITHIN 12" OF THE RELEASE DEVICE. • SIGN LETTERING SHALL BE AT LEAST 1" HIGH AND SHALL HAVE A STROKE OF NOT LESS THAN 1/8".
