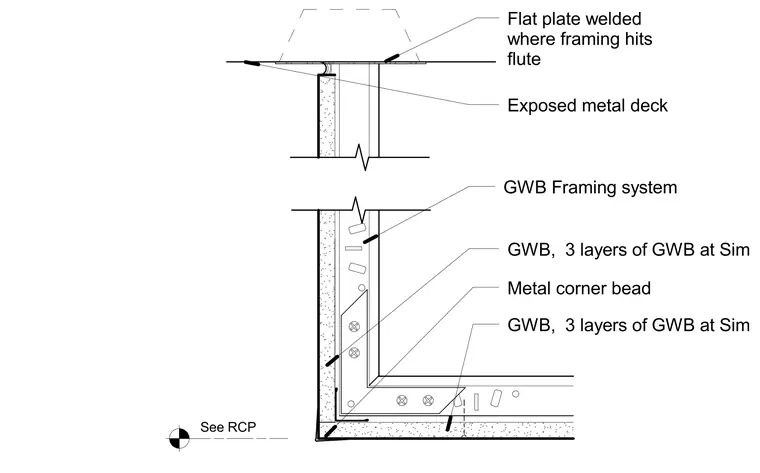

A gypsum board framing system terminates at an exposed metal deck overhead, secured by a flat plate welded where the framing hits the metal deck flute. The vertical and horizontal wall surfaces consist of three layers of gypsum board supported by metal corner beads at the outside corner. A reflected ceiling plan reference mark indicates coordination with ceiling layout.
GWB, 3 layers of GWB at Sim Metal corner bead GWB Framing system Exposed metal deck Flat plate welded where framing hits flute See RCP GWB, 3 layers of GWB at Sim
