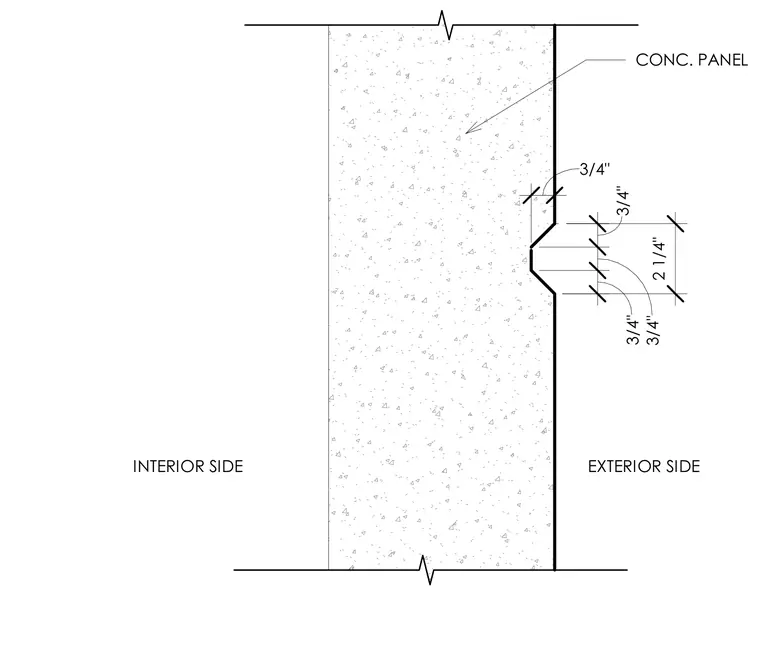

An exterior concrete panel features a recessed horizontal reveal on its exterior face. The profile dimensions include a three-quarter-inch depth at the top splay, a two-and-one-quarter-inch overall vertical span across the reveal, and three-quarter-inch legs at the sloped transitions.
EXTERIOR SIDE CONC. PANEL INTERIOR SIDE 3/4" 3/4" 3/4" 3/4" 2 1/4"
