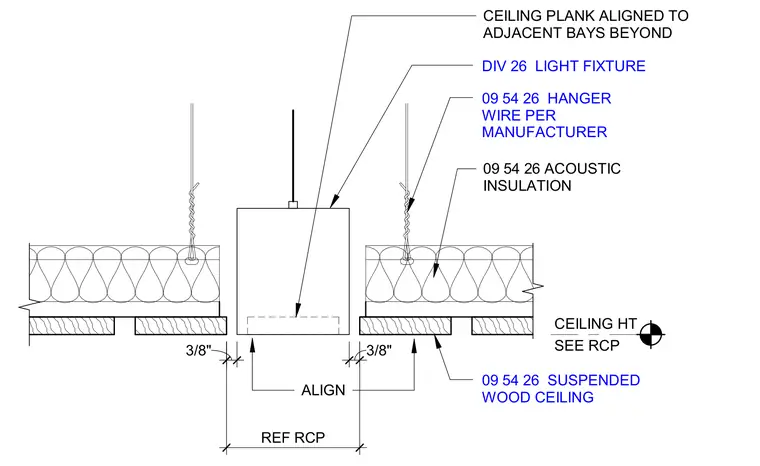

A suspended wood ceiling is supported by hanger wires spaced per the manufacturer's specifications. Acoustic insulation rests above the wood ceiling panels. A Division 26 light fixture is integrated into the assembly with a three-eighths inch gap maintained at the fixture edges. Ceiling planks align to adjacent bays beyond.
CEILING HT SEE RCP 09 54 26 HANGER WIRE PER MANUFACTURER 09 54 26 ACOUSTIC INSULATION 09 54 26 SUSPENDED WOOD CEILING 3/8" 3/8" DIV 26 LIGHT FIXTURE ALIGN CEILING PLANK ALIGNED TO ADJACENT BAYS BEYOND REF RCP
