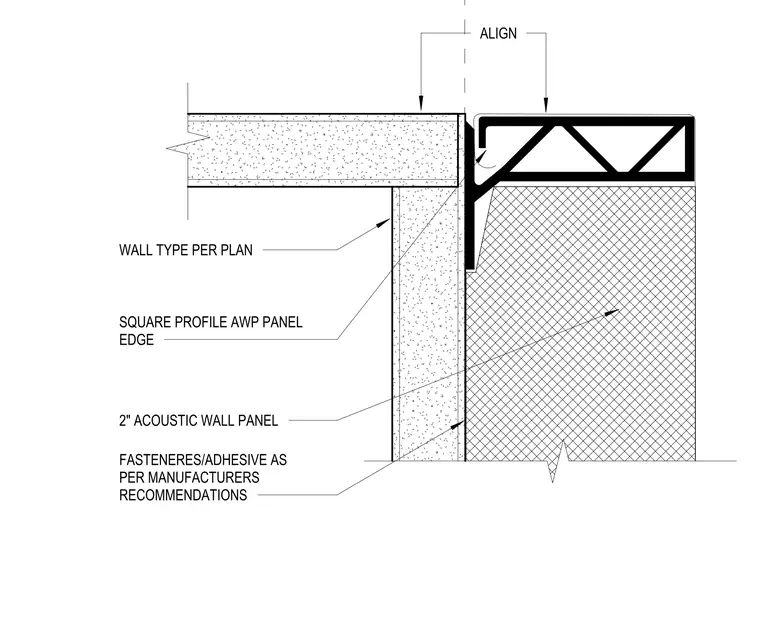

A two-inch acoustic wall panel installs against a wall type specified per plan. A square profile acoustic wall panel edge trim caps the panel termination for a finished corner condition. The trim aligns with the adjacent wall surface. The panel secures to the substrate using fasteners or adhesive per manufacturer recommendations.
